Hanma High Speed Open-Width Double Knitting Machine is developed on the basis of Double machine and possesses the characteristics of the double machine.
Double Jersey Rib Interlock Circular Knitting Machine install with two tracks CAMs on the dial plate and four tracks CAMs in the cylinder, through adjusting
The major advantages of the machine: shearing can be done in the machine synchronously, to reduce the losses of materials and save the cost.
The machine has the characteristics of frequency control, transmission speed adjustment, failing cloth in take-up cloth mode
It adopts four-track cam design of closed type with Draw-down cam, Tuck cam, Floating threads cam. Central total lift can easily
Complete and sophisticated chestnut process design can be equipped with sinkers in different specifications.
DOUBLE TERRY CIRCULAR KNITTING MACHINE
Classification:
Single Jersey Circular Knitting Machine
Summary:
The company introduces international advanced technology and production inspection equipment. The development and design of products all adopt international advanced three-dimensional (3D) three-dimensional design.
Tel:
Tel:
- Presentation
- Specification
- Shipping
- Detail
- Equipment
- Features
- Fabric
-
- Commodity name: DOUBLE TERRY CIRCULAR KNITTING MACHINE

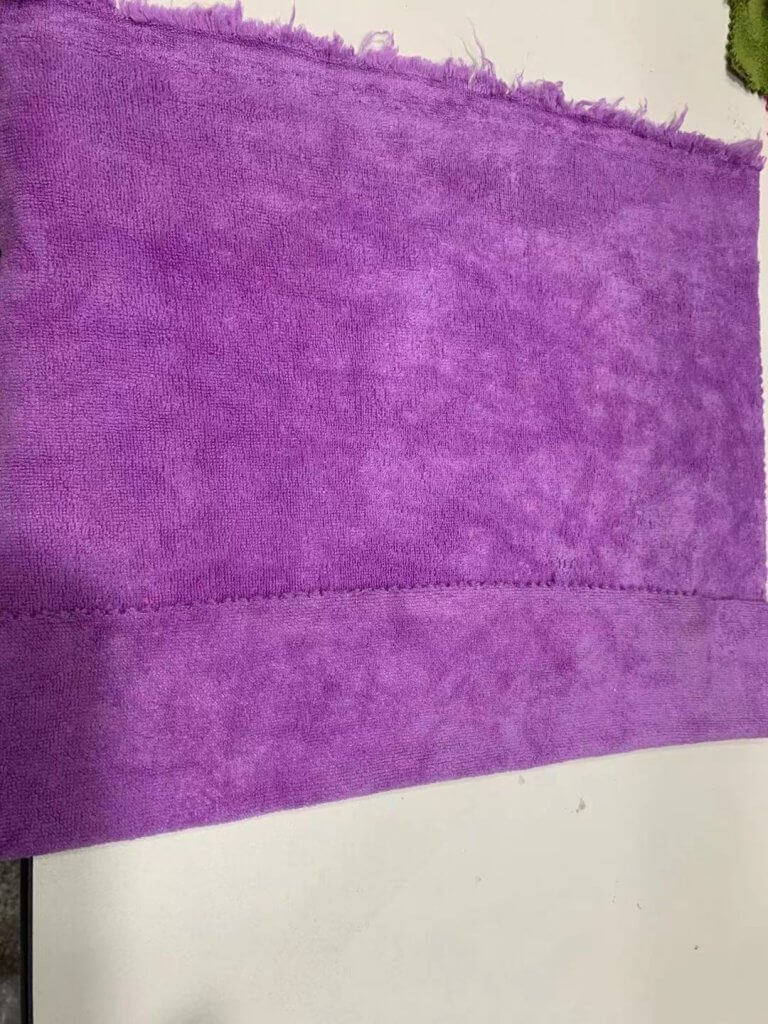

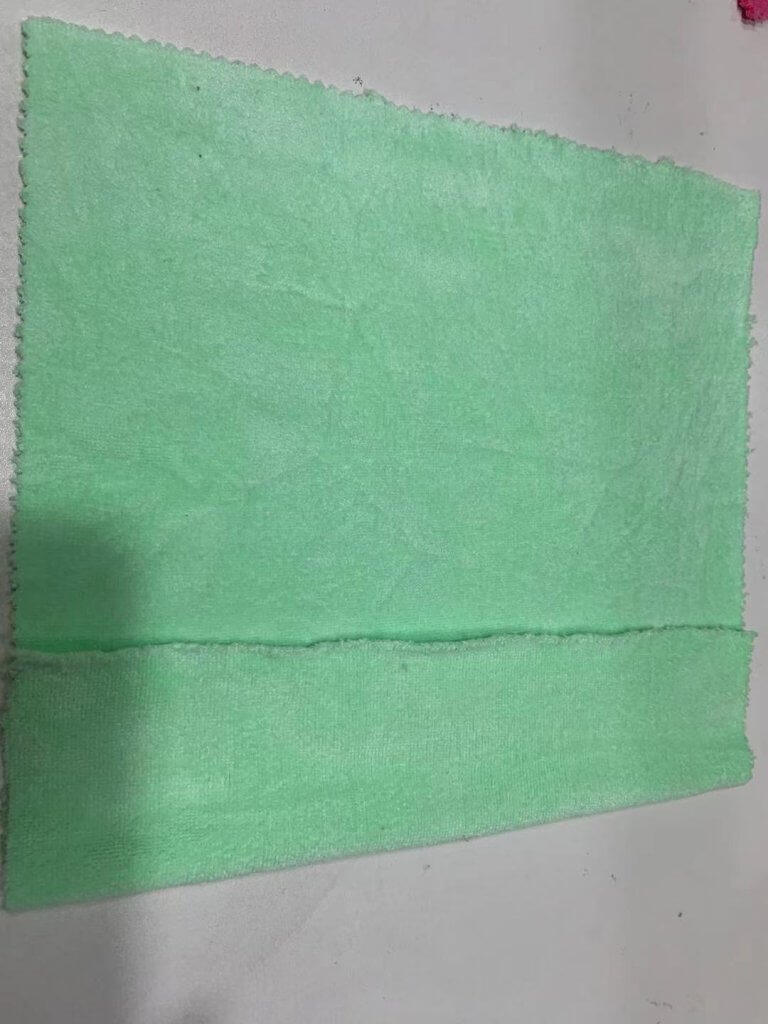

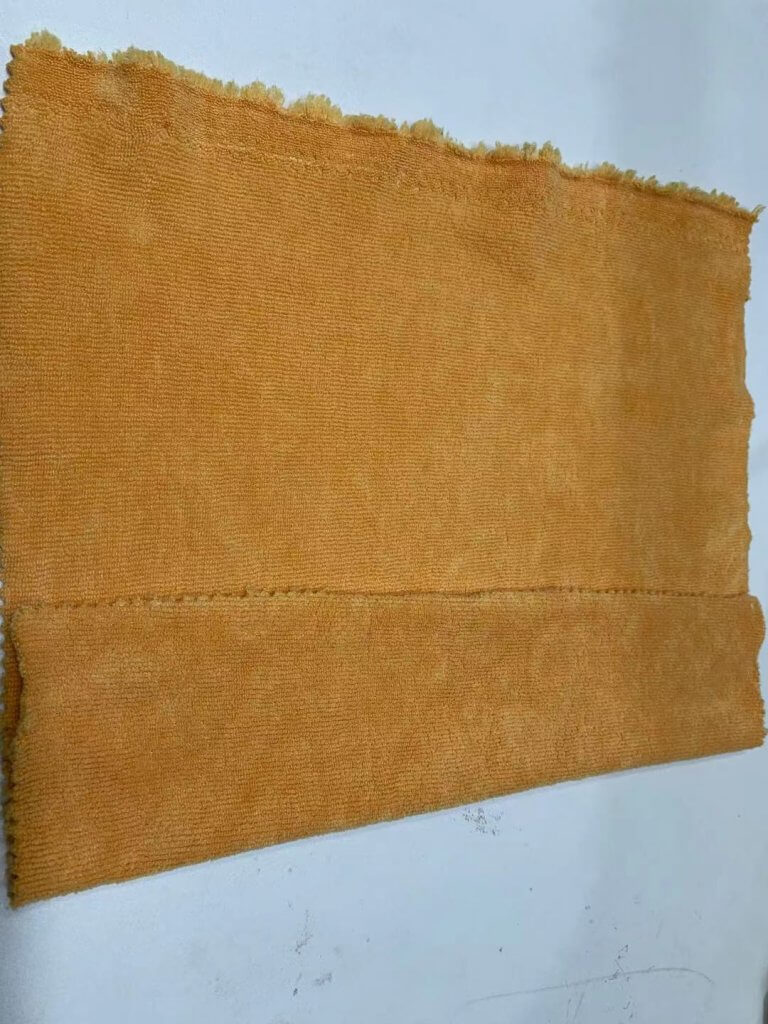

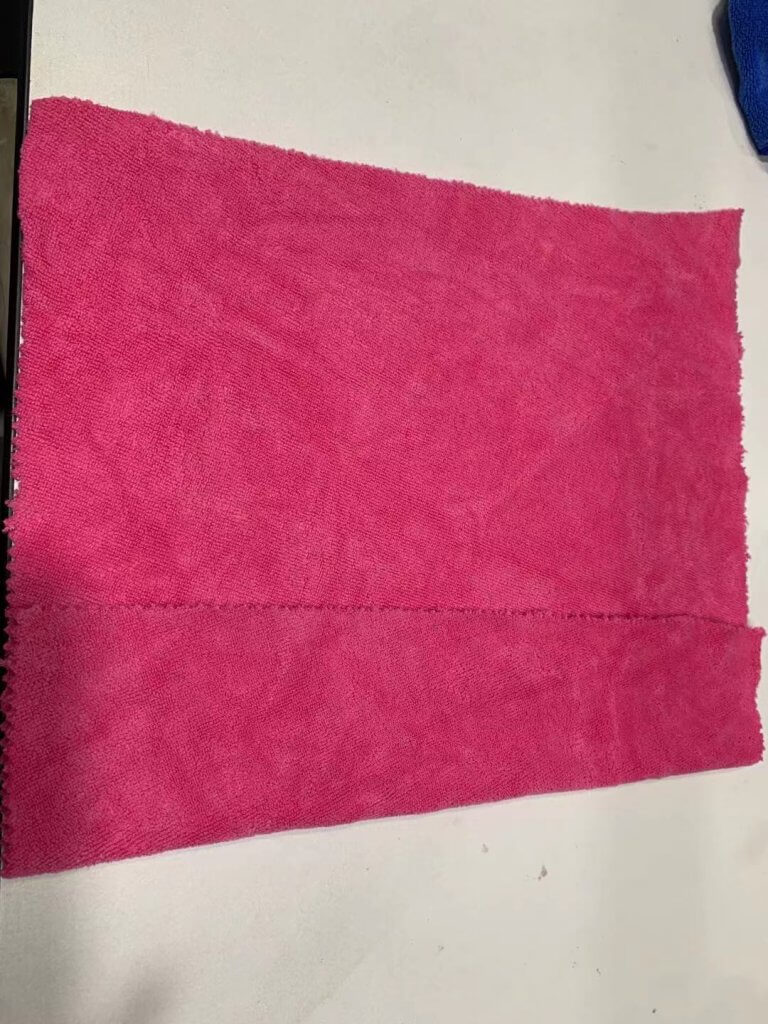

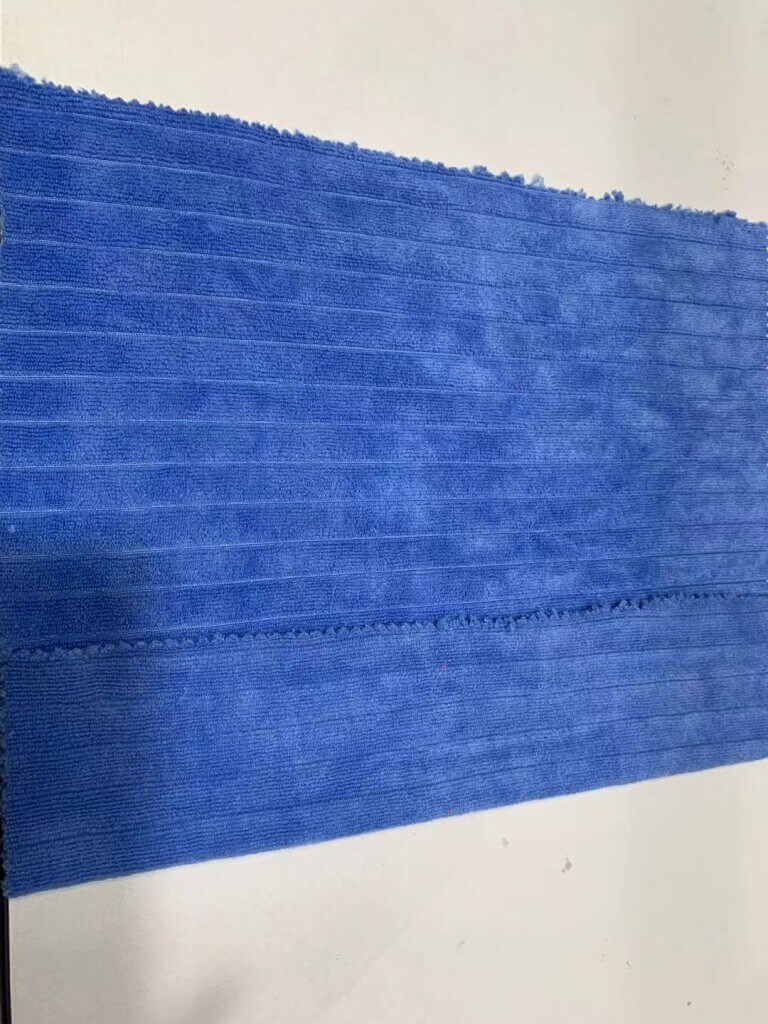

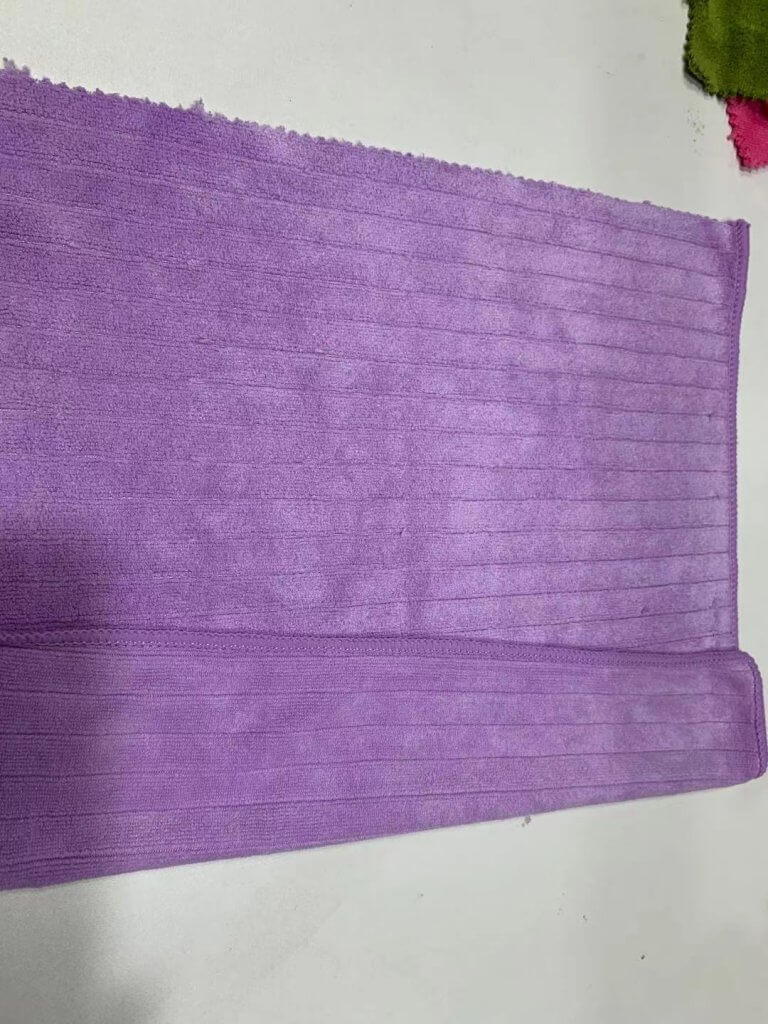

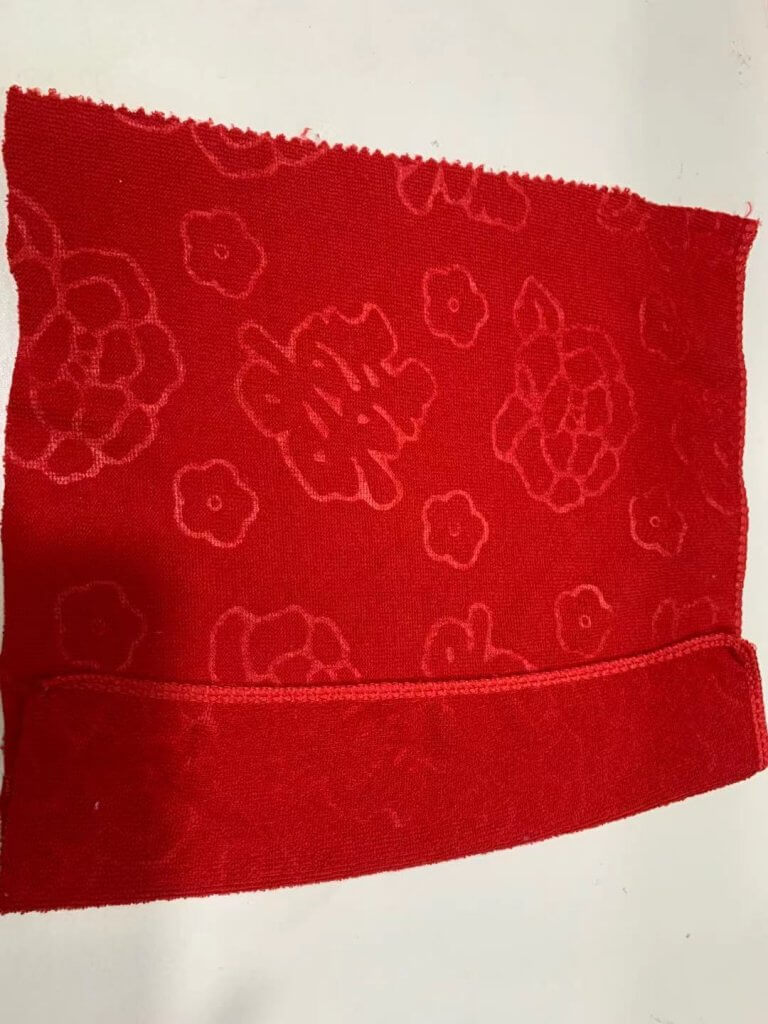

Equipped with different standards of sinkers for customized, the terry knitting machine is capable of knitting high-quality terry fabrics of varying loop heights.
1. Equipped with different standards of sinkers for customized, the terry knitting machine is capable of knitting high-quality terry fabrics of varying loop heights.
2. Unique sinker design which assure the perfect terry fabric. Plain terry structure, anti-pilling polar fleece.
3. Double Terry knitting machine, capable of manufacturing cleaning towel, bath towel, baby and women wears and large arrange of absorbent cloth. -
1. Use mono-block cam system, which use special steel made by C.N.C computerized working and with special heater process ensure high precise and durable. Suit for needles’ high-speed operation and the runway is precise. They are widely used in knitting the upscale lining.
2. Needle cylinder uses the special steel, which is precisely processed and high wave heat treatment. So it is durable.
3. The gear oil and the needle oil separate the lubrication in the lubrication system designs. Knitting parts are lubricated through oil machine spraying needle oil.
4. The control system uses exchange motor cooperating transducer control panel, which may accelerate, decelerate and exchange wiggly power at will.
5. Taking up device by 120 section cloth winder and take up even.
Diameter:20″-38″
Gauge:16G-28G
Feeder:42F -102F
Speed:16-30r/min
Power:5.5-7.5KW -
-
Description
Supplier
Brand
Quantity
1 Insert flake type cylinder &dial (Germany metal，Cln 45# )插片式针筒特殊合金钢 Hanma China 1 unit 2 Needles 针 W0 85.63 G003 Groz-beckert Germany 1 set 3 Sinkers 双面毛巾片 外 T038-TD-A030-1-07/D-GC TAI-FUNG China 1 set 4 Sinkers 双面毛巾片 内 T038-TD-A030-03-3.5/E-GC TAI-FUNG China 1 set 5 Positive storage yarn feeders输纱器 Hanma China 1 unit 6 Lycra feeder 氨纶架 Hanma China 1 unit 7 Oiling lubricator喷油机 Hongsheng China 1 unit 8 Aluminum Tube Yarn creel 风管纱架 Hanma China 1 set 9 One way Take-down device单用卷布机 Yong tai China 1 set 10 Invertors for motor controller变频器 Sunye China 1 set 11 Motor 马达 Hanma China 1 set 12 Fabric cardrex equipment撑布架装置 Hanma China 1 set 13 Cam ( Japanese metal, K110/SLD) 三角 China China 1 set 14 Digital indicator Control panel 控制面板 China China 1 set 15 Automatic dust fans with blower equipment. 自动吹风装置系统 China China 1 set 16 Radar type round 360”Clear dust equipment 雷达式360度回转除尘装置 China China 1 set 17 Spare tools工具箱（内含工具） China China 1 set 18 Operation manual for invertors & controller panel 机器操作手册 1 set 19 Spare parts : (a) extra needles 100pcs (b)extra sinkers100pcs (c)extra feeders 1pcs (d)air blower gun 1 set (e)fuse 4pcs (f) extra yarn carrier 1pcs 小量零配件供调试用：a)织针100枚 b)沉降片100 枚 c)输纱器1个 d)气枪组 1 套 e)保险丝 4 条 f)喂纱嘴1个
-
